PTFE Envelope Gasket vs. Pure PTFE Gasket: Which One Should You Use?
Gaskets play a crucial role in sealing applications, ensuring leak-proof connections in various industries. Among the many options available, PTFE envelope gaskets and pure PTFE gaskets are widely used for their excellent chemical resistance and durability. But which one is the better choice for your application? Let’s explore their differences, advantages, and ideal uses.

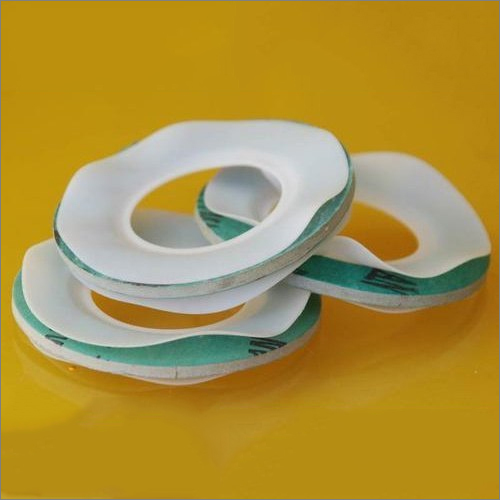

What is a PTFE Envelope Gasket?
A PTFE envelope gasket consists of an inner core made of a different material, such as rubber, fiber, or stainless steel, with a PTFE outer layer. The envelope or covering protects the inner material from chemical exposure, while the core provides strength and flexibility. These gaskets are commonly used in applications where chemical resistance is needed, but additional strength and sealing ability are required.
Advantages of PTFE Envelope Gaskets
- Chemical Resistance – The PTFE outer layer provides excellent resistance to most chemicals, making it ideal for corrosive environments.
- Flexibility – The inner core material offers flexibility and resilience, allowing the gasket to maintain a strong seal.
- Cost-Effective – Since only the outer layer is PTFE, these gaskets are often more affordable than pure PTFE gaskets.
- Easy to Install – They can be easily installed and conform well to flange surfaces, reducing the risk of leaks.
- Wide Temperature Range – Suitable for high-temperature applications when the core material can withstand the conditions.
Common Applications of PTFE Envelope Gaskets
- Chemical processing industries
- Food and beverage industries
- Pharmaceutical industries
- Water treatment plants
What is a Pure PTFE Gasket?
A pure PTFE gasket is made entirely from PTFE material. This type of gasket is preferred in industries that require a high level of chemical resistance and purity. Since it contains no fillers or other materials, it is ideal for applications that involve aggressive chemicals or extreme temperatures.
Advantages of Pure PTFE Gaskets
- Superior Chemical Resistance – Pure PTFE gaskets can withstand almost all chemicals, including strong acids and bases.
- Non-Stick Properties – Their smooth surface prevents substances from sticking, reducing the risk of contamination.
- High-Temperature Tolerance – Pure PTFE gaskets can operate at temperatures up to 260°C, making them ideal for high-heat applications.
- Long Lifespan – PTFE does not degrade easily, ensuring a longer service life.
- Non-Toxic and Safe – They are commonly used in food, pharmaceutical, and medical applications where purity is essential.
Common Applications of Pure PTFE Gaskets
- Chemical processing plants
- Food and beverage processing
- Medical and pharmaceutical applications
- High-temperature sealing applications
Key Differences Between PTFE Envelope and Pure PTFE Gaskets
| Feature | PTFE Envelope Gasket | Pure PTFE Gasket |
|---|---|---|
| Material Composition | PTFE outer layer with inner core | 100% PTFE |
| Chemical Resistance | High | Very High |
| Flexibility | More flexible due to inner core | Less flexible |
| Cost | More affordable | More expensive |
| Strength | Stronger due to core material | Weaker but highly resistant |
| Applications | General sealing with chemical exposure | Extreme chemical and temperature environments |
How to Choose the Right PTFE Gasket for Your Needs?
Choosing between a PTFE envelope gasket and a pure PTFE gasket depends on your specific application requirements. Here are some key factors to consider:
1. Chemical Exposure
If your application involves highly aggressive chemicals, a pure PTFE gasket is the best choice because it offers superior chemical resistance.
2. Temperature Requirements
Pure PTFE gaskets can handle higher temperatures, making them suitable for extreme heat applications. If your application requires moderate temperatures, a PTFE envelope gasket with a heat-resistant core material may be sufficient.
3. Mechanical Strength and Flexibility
PTFE envelope gaskets provide better flexibility and mechanical strength due to their inner core. They are ideal for applications that require a strong and adaptable seal.
4. Cost Considerations
If budget is a concern, a PTFE envelope gasket is a more cost-effective option while still providing chemical resistance.
5. Industry Requirements
Industries such as food, pharmaceuticals, and chemicals require high-purity materials. Pure PTFE gaskets are often preferred in such cases to prevent contamination.
Finding a Reliable PTFE Gasket Manufacturer
When selecting a PTFE gasket manufacturer, it is important to choose one that provides high-quality products and reliable customer support. Look for manufacturers that offer:
- Custom Gasket Solutions – Ability to provide gaskets tailored to your specific needs.
- High-Quality Materials – Ensure the gaskets meet industry standards for performance and durability.
- Certifications – Look for certifications like ISO, FDA compliance, and other industry approvals.
- Competitive Pricing – A good manufacturer should offer cost-effective solutions without compromising on quality.
- Timely Delivery – Ensure they can provide fast and efficient delivery for urgent requirements.
Conclusion
Both PTFE envelope gaskets and pure PTFE gaskets have their advantages and are used in different applications. If you need superior chemical resistance and high purity, a pure PTFE gasket is the best option. However, if you need a balance of flexibility, strength, and cost-effectiveness, a PTFE envelope gasket is a great choice. Understanding your specific needs will help you make the right decision when selecting a gasket. Additionally, choosing a reliable PTFE gasket manufacturer ensures that you receive high-quality products that meet industry standards temperature performance, and longevity, a pure PTFE gasket is the better choice. Always select a trusted PTFE gasket manufacturer to ensure you receive high-quality products for your needs.
